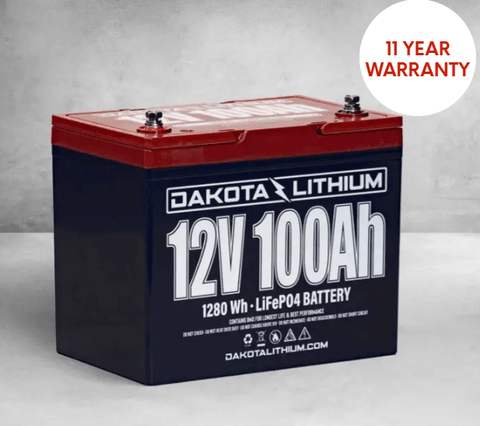

Built Dakota tough, this 12 volt lithium battery packs a big punch. This battery has been re-engineered with Lithium Iron Phosphate (LiFePO4) technology into a Group 24 Size housing! This battery has twice the power, half the weight, and lasts 8 times longer than a sealed lead acid battery – providing exceptional lifetime value. 100 Amp hours of capacity provides a full day of power for high amp draw trolling motors or for long days on the open road in your RV. Ideal for deep cycle applications like trolling motors, solar energy storage, or boating, where you need lots of power for a long time. Same performance as our legendary 10 Ah battery, but with 1,000% more capacity. All backed up by a best in class 11 year warranty. LiFePO4 charger included.
SPECIFICATIONS
STORAGE CAPACITY
100 Ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 100 Amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.
VOLTAGE
12.8V (Dakota Lithium 12V batteries can be used in series for up to 48V systems)
ENERGY
1280 Watt-hours (Wh)
TERMINALS
M8 bolt size. (Max torque 15 ft. lbs.)
SIZE
10.23"L x 6.60"W x 8.66"H (260mm x 169mm x 215mm) (220mm to top of terminal) Group 24 equivalent.
WEIGHT
27.55 lbs (12.5Kg). That's 60% lighter than a SLA battery.
GROUP SIZE 24
BCI Group Number 24 & Group 24 equivalent / compatible for physical dimensions (L x W x H) & terminal location. Usable deep cycle capacity is much higher (2x) than a lead-acid battery of the same group size. Deep cycle only. Not for starting engines.
LIFECYCLES (BATTERY LIFESPAN)
Up to 80% capacity for 5,000 cycles in recommended conditions. The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.
OPERATING TEMPERATURE
Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20°F min, +120°F max optimal operating temps (battery performs well down to -20°F). Avoid charging below 32°F.
DISCHARGE
100A max continuous, 200A max pulse 10 second pulse. The flat discharge voltage curve provides a 75% bigger capacity than a 100Ah SLA battery.
CHARGE
50A max, 14.4V recommended, 15V max. Included is a LiFePO4 compatible charger. A SLA charger may work, but will reduce performance and lifespan of the battery.
INCLUDES ACTIVE BMS PROTECTION
Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and high temperature protection for increased performance and longer life.
CERTIFICATIONS
Dakota Lithium's cells are UL1642 certified and have been tested per IEC62133 and UN 38.3 standards. They meet all US and international regulations for air, ground, and train transport.
ISO 9001:2015
Dakota Lithium is ISO Certified per 9001:2015 standards, and select models are produced in ISO 14001 certified facilities.
CHARGER INCLUDED
12V 10A LiFePO4 charger included. Dakota Lithium 12V batteries should be charged at 14.4 volts, higher than AGM or lead acid. Lead acid chargers will work, but will only charge the battery to 80% of capacity.
NOT FOR STARTING ENGINES
This is a deep cycle 12V battery. Not designed for starting gasoline engines.
